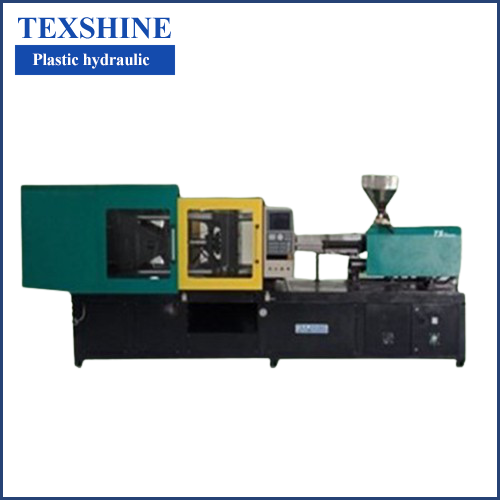

Plastic Injection Moulding Machines

Tex Shine Plastic Hydraulic is the Leading Manufacturer of Plastic Injection Moulding Machines in Coimbatore

Operation Mode Automatic
Automation Grade Automatic
Machine Structure Horizontal
Structure Horizontal
Clamping Way Hydraulic
Plastic Type PP, ABS, PE, PA
Model No. TS-270
Oil tank capacity 180 Liter
Warranty 1 years
Clamping Force 270 Ton
Machine Weight 8.5 Ton Approx
Number Of Phases 3 Phases
Power 49 KW
Pressure 140
Opening Stroke 540
Number Of Heating Zones 5
Screw Speed 220 rpm
Max. Daylight 1140
Screw Diameter 55
L/D Ratio 22
Platen Size 570 x 570
Ejector Stroke 150 mm
Closing Forces 270 Ton
Injection Shot Capacity 700 GMS(PS)
Heater Load 6 kW
