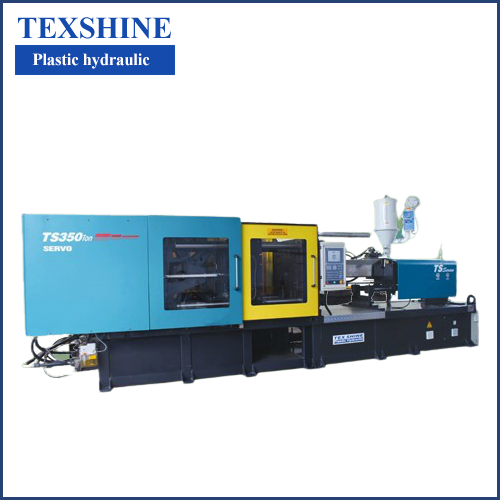

Tex Shine Plastic Hydraulic is the leading Manufacturer of Horizontal Screw Type Injection Moulding - TS 350 in Coimbatore
Injection Unit:
| Screw Diameter | mm | 65 | 70 | 75 |
| Screw L / D Ration | 21.5 | 20 | 18.7 | |
| Shot Size (Theoretical) | cm | 1161 | 1226 | 1407 |
| Injection Weight (ps) | Gms | 1057 | 1226 | 1407 |
| Screw Speed | Mpa | 168 | 146 | |
| Screw Speed | r/min | 160 |
Clamping Unit:
| Clamp Tonnage | KN | 3500 |
| Toggle Stroke | mm | 670 |
| Tia bar Diameter | mm | 110 |
| Space Between Tie bars | mm | 710x630 |
| Max. Mold Height | mm | 710 |
| Min. Mold Height | mm | 260 |
| Ejector Stroke | mm | 200 |
| Ejector Tonnage | KN | 90 |
Others:
| operating pressure | Bar | 160 |
| pump motor power (sl) | KW | 35.6 |
| Servo pump | LPM | 250lpm |
| Heater power | KW | 24.5 |
| Machine Dimension (LxWxH) | m | 7.3x1.8x2.2 |
| Machine Weight (approx) | 1 | 11.5 |
